In the complex world of industrial piping and fluid transfer, maintaining system integrity is paramount. Expansion joints, frequently referred to as pipeline compensators or flexible joints, are highly engineered safety components installed within piping systems to absorb movement, relieve stress, and prevent catastrophic failures. At KE Motion Hydro, we specialize in designing and manufacturing high-performance expansion joints that ensure the continuous, safe, and efficient operation of your critical infrastructure.
Pipelines are dynamic systems. Once operational, they are subjected to a variety of mechanical and thermal stresses that can cause pipes to shift, bend, or vibrate. If these forces are not properly managed, they transfer directly to fixed equipment (such as pumps, chillers, valves, and pressure vessels), leading to premature wear, flange leakage, or even pipe rupture.
The primary functions of KE Motion Hydro expansion joints include:
Thermal Expansion and Contraction Absorption: As fluids heat up or cool down, pipes naturally expand or shrink. Our joints act as flexible buffers, accommodating this thermal elongation without stressing the pipeline.
Vibration Isolation and Noise Reduction: Heavy rotating equipment generates severe mechanical vibrations. Rubber expansion joints, in particular, act as shock absorbers, dampening these vibrations and significantly reducing acoustic noise transmission.
Compensation for Misalignment: During installation or due to gradual ground settlement over time, minor misalignments occur. Flexible joints safely bridge these gaps without forcing the pipes into unnatural positions.
Hydraulic Shock (Water Hammer) Protection: Sudden changes in fluid velocity can cause immense pressure spikes. Expansion joints help absorb the kinetic energy of these shocks.
To provide the right solution for every piping layout, our expansion joints are engineered to absorb various directional movements:
Axial Movement: Compression or elongation along the straight centerline of the pipe.
Lateral Movement: Side-to-side shear movement perpendicular to the pipe’s axis.
Angular Movement: Bending of the pipeline axis at an angle.
Universal/Combined Movement: A complex combination of axial, lateral, and angular deflections simultaneously.
We offer a diverse range of compensators, distinctly categorized by their core materials to suit specific operational environments:

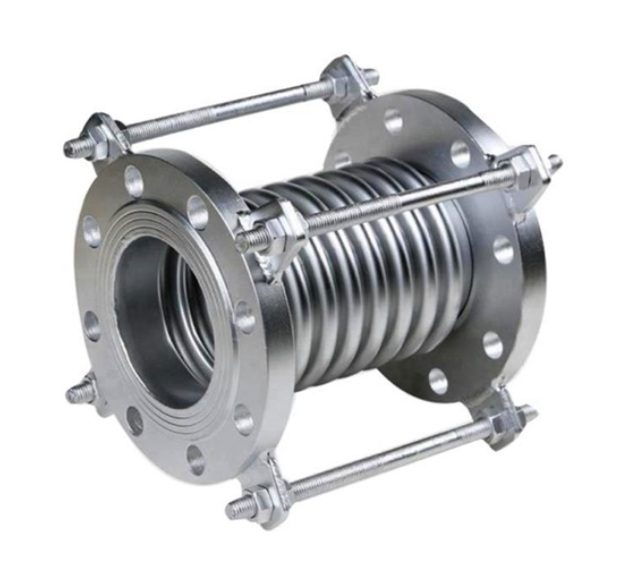

Metal Expansion Joints: Manufactured with highly flexible stainless steel bellows. They are the standard for high-temperature applications (steam, thermal oil, exhaust gases) and extreme pressure environments. Metal joints offer unmatched durability in the petrochemical and power generation sectors.

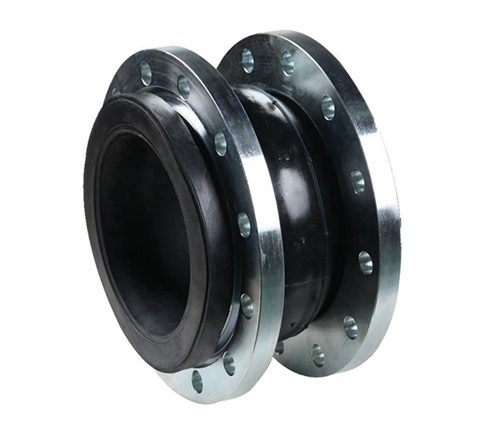

Rubber Expansion Joints: Constructed from reinforced synthetic elastomers (EPDM, NBR, Viton, PTFE). These are the ultimate choice for vibration damping, HVAC systems, water treatment, and chemical processing. They offer superior flexibility and corrosion resistance.
Every industrial facility has unique demands. That is why KE Motion Hydro doesn’t just supply standard off-the-shelf products. Our engineering team calculates exact pressure thrusts, spring rates, and temperature limits to provide tailor-made expansion joints. By adhering strictly to international manufacturing standards, we guarantee that every unit delivered offers exceptional cycle life, reliability, and safety.
