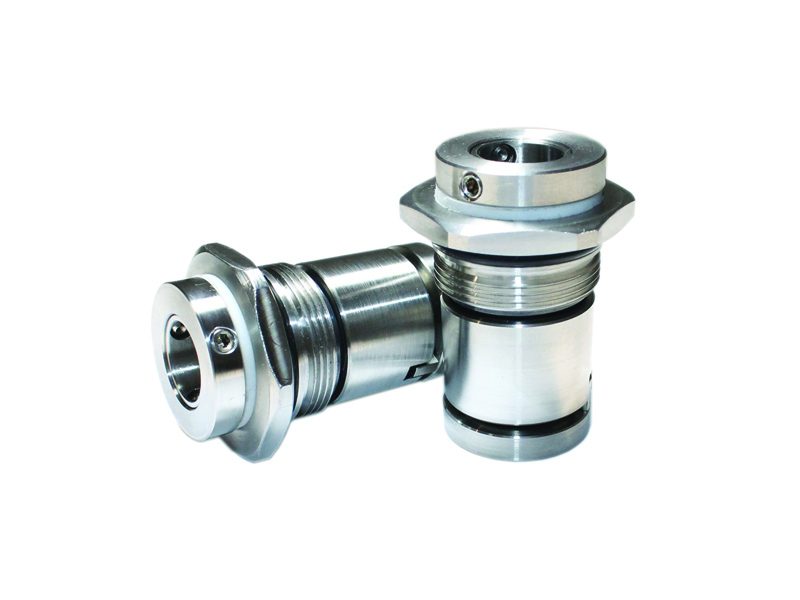

• Special mechanical seals for Grundfos CR pumps
• Ready to fit
• All wetted parts of stainless steel
• Easy to install
• Pump type or OEM seal number is sufficient for the order

Material options:

• HQQE – Silicon carbide / silicon carbide – EPDM
• HQQV – Silicon carbide / silicon carbide – FKM
• HUBE – Tungsten carbide / carbon-graphite – EPDM
• HUBV – Tungsten carbide / carbon-graphite – FKM
• HUUE – Tungsten carbide / tungsten carbide – EPDM
• HUUV – Tungsten carbide / tungsten carbide – FKM

Type: Cartridge mechanical seal

For pumps: Grundfos CR

Replacement:

• Grundfos CR(N) 1/3/5 D12mm Kit shaft seal HQQE KB012S1 – 96455086
• Grundfos CR(N) 10/15/20 D16mm Kit shaft seal HQQE KB016S1 – 96511844
• Grundfos CR(N) 32/45/64/90/120/150 D22mm Kit shaft seal HQQE – 96525458
