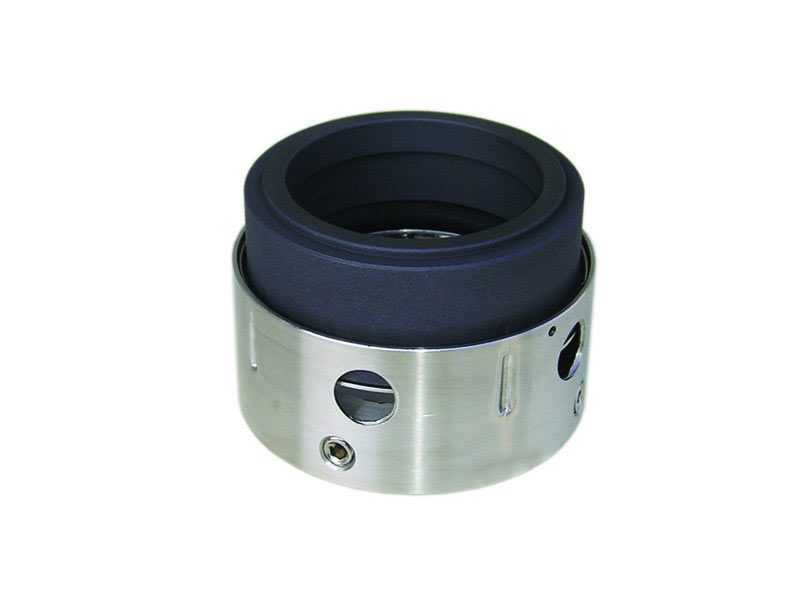

The BV-1 is a robust, balanced mechanical seal designed for demanding applications in water and chemical pumps. Unlike unbalanced models, this seal compensates for hydraulic pressure forces, allowing it to operate efficiently at higher pressures (up to 25 bar) with lower friction and heat generation.

It features a multiple spring design for uniform face loading and is independent of the direction of rotation. The installation dimensions are fully compliant with DIN 24960 (EN12756) standards.

Seal faces materials:

• Resin impregnated caron(В)
• Antimony impregnated carbon (A)
• special CrMo steel(Е)
• tungsten carbide (U3)
• silicon carbide (Q1, Q2)
• ceramics Al O (V) 2 3

Secondary sealing materials:

• • Fluorcarbon rubber, FKM (V)
  • Nitrile-butadiene-rubber (P)
  • Ethylene propylene
  • rubber, EPDM (E)
  • Perfluorocarbon rubber, FFKM (for example Kalrez®, etc.), (K)
  • PTFE

Operating limits:

• • • p = 25 bar
    • t = -20 … 180 °C
    • v = 15 m/s

Axial movement: ±1 мм

Type: Pusher mechanical seal
Replacement: Burgmann H12N, AES T01DB, Hecker HN 430N
